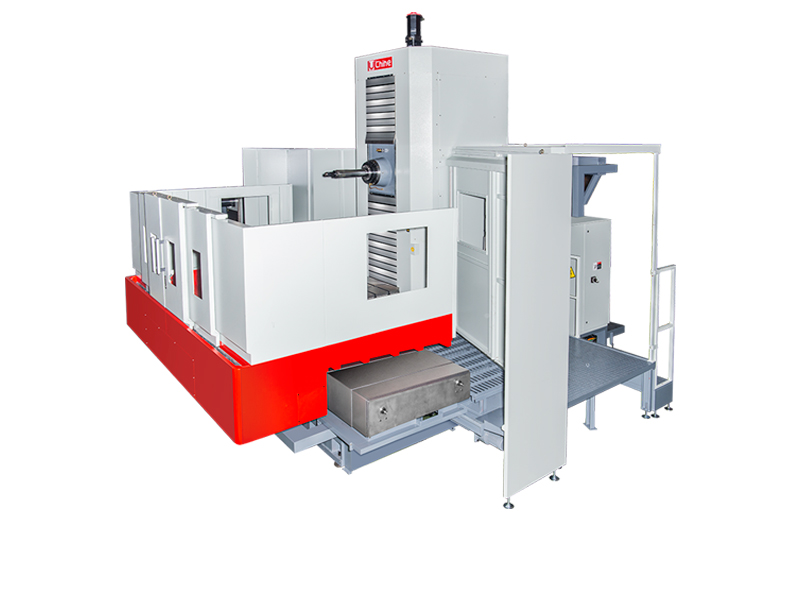

UHM CNC Horizontal Machining Center Inquiry

UHM Quill

UHM Quill UHM Quill UHM Quill
  • Features:

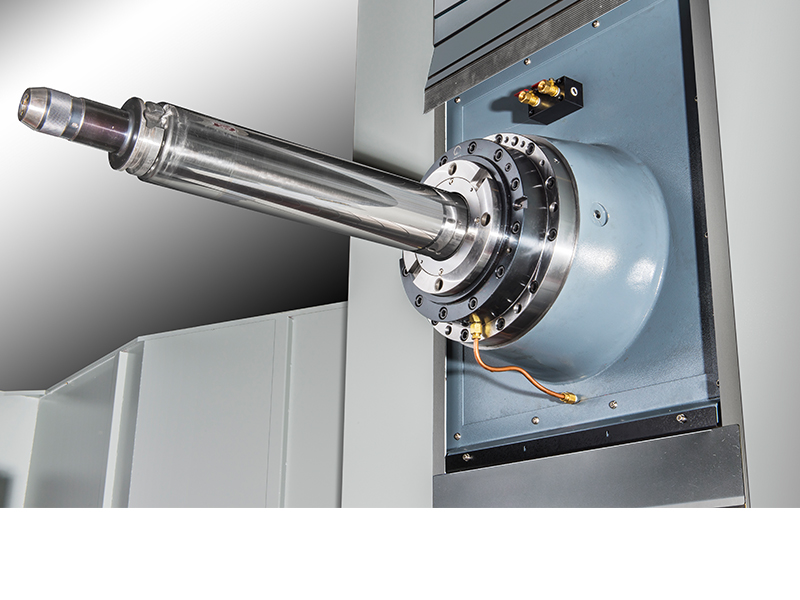

    • Roller type linear ways on three axes. The spindle is mounted at the center of the column. W-axis provides Ø110mm and Ø130mm to select.
    • Rapid traverse rates on three axes reach 18m/min. (24m/min. optional). The series of machines is suitable for boring on large box shaped parts. Also, ideal for precision machining on large molds.

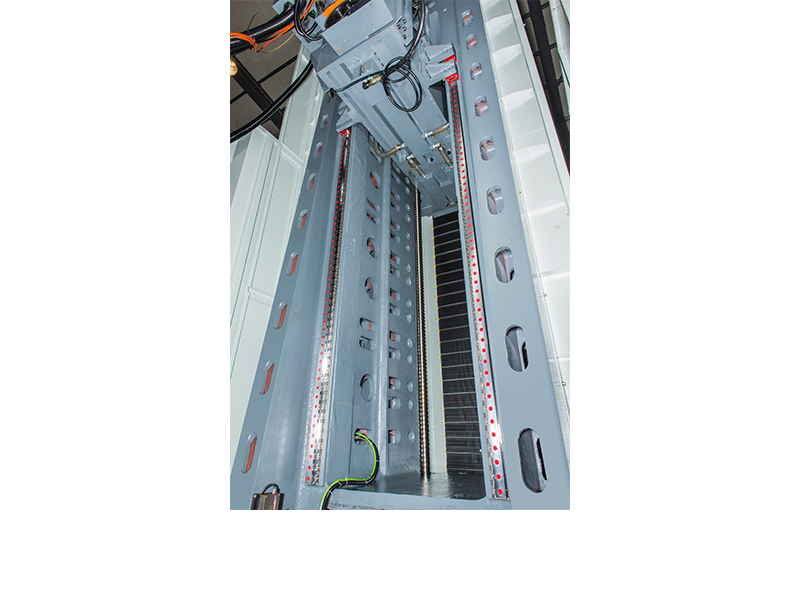

    • Designed with mechanical counter-balance weights, which are located at both sides of the column combined with the use of linear guide ways to ensure smooth movement of the spindle head without vibration.
    • Two each linear ways at the front and rear side of the spindle head for increased rigidity. This feature also effectively avoids deflection when the spindle is extending.
    • Various types of tables (8 ~ 20 tons loading capacity) to choose with 1º indexing or 0.001º simultaneously controlled table.
  • MODEL UNIT UHM-11020 UHM-11025 UHM-11032 UHM-11042 UHM-13020 UHM-13025 UHM-13032 UHM-13042
    TABLE Table Size mm 1400x1600x0.001°(1600x1800x0.001°)
    T-Slots mm 24X7
    Maximum Load kg 10000(15000)
    TRAVEL X Axis mm 2000 2500 3200 4200 2000 2500 3200 4200
    Y Axis mm 2000(2500)
    Z Axis mm 1700(2000)(2500)
    W Axis mm 500 700
    SPINDLE Diameter mm Ø110 Ø130
    Speed rpm 10~4000(10~2500) 10~3000(10~2000)
    Taper   7 / 24 taper ISO.50, BT-50
    DISTANCES Spindle Center to Table mm 0~2000(0~2500)
    Spindle Nose to Table Center mm 50~2250(2550,3050) -150~2250(2550,3050)
    Height from ground to table surface mm 1480
    FEED RATE Rapid Feed rate X/Y/Z m/min 18(24)
    Rapid Feed rate W m/min 6
    Minimum Setting mm 0.001
    Cutting Feed rate mm/min 1~5000
    MOTOR Spindle Servo Motor-cont./30min. kW 22/26
    X/Y/Z/W/B Servo Motors kW 7(9)/7/7/4/7
    Lubricator Motor kW 0.15
    Hydraulic Pump kW 2.25
    Coolant Pump kW 1.17
    Chip Conveyor kW 0.2
    Oil Cooler Pump kW 0.75
    ATC No. of Tools pieces 40(60,90)
    Tool Selection   Absolute
    Tool Change Time sec. 15
    Max. Tool (Diameter/Length) mm Ø125/Ø250(Without Adjacent Tool)/Length 400
    Max. Tool Weight kg 25
    Axis Accuracy X/Y/Z Axis Locate Accuracy(ISO23042) mm XYZ AXIS:P≦0.015/full length X AXIS:P≦0.020/full length  Y,Z AXIS:P≦0.015/full length XYZ AXIS:P≦0.015/full length X AXIS:P≦0.020/full length  Y,Z AXIS:P≦0.015/full length
    X/Y/Z Axis Repeat Accuracy(ISO23042) mm XYZ AXIS:Ps≦0.010 X AXIS Ps≦0.015, Y,Z AXIS:Ps≦0.010 XYZ AXIS:Ps≦0.010 X AXIS Ps≦0.015, Y,Z AXIS:Ps≦0.010
    COOLANT & LUBRICATION Coolant Tank Volume L 400
    Hydraulic Tank Volume L 400
    Lubrication Tank Volume L 8
    MISCELLANEOUS Power Required kVA 55
    Pressurized Air kg/cm² 6
  • standard accessories:

    1. Linear scale on X,Y,Z axes
    2. Spindle oil cooler
    3. Automatic power off
    4. Hydraulic system
    5. Coolant system
    6. Lubricator system
    7. Alarm lamp
    8. Work lamp
    9. M.P.G.
    10. RS232 interface
    11. Heat exchanger
    12. Chip conveyor and cart
    13. Leveling bolts & pads
    14. Controller manuals and circuit diagram
    15. Operation manuals
    16. Machine inspection lists
    17. Splah guards (around the table)
    18. Toolbox
    19. FANUC 0i-MF
    20. ATC : 40 Tools

    optional accessories:

    1. ATC: 60,90 Tools
    2. Oil mist device
    3. Variety of controllers( FANUC / MELDAS /SIEMENS / HEIDENHAIN)
    4. Various auxiliary work tables are available
    5. Air conditioner at cabinet
    6. Extension Sleeve 250/300MM(UHM-110) Extension Sleeve 350/400MM(UHM-130)
    7. Coolant through spindle
    8. Various work tables are available 1600X1800 Loading 10TON 1600X1800 Loading 15TON
    9. Manual 90゚ Facing Head
    10. Facing Millng Head
    11. ø110MM High rigidity Spindle 2500RPM
    12. ø130MM High rigidity Spindle 2000RPM
    13. X, Y, Z Axis High Speed 24M/MIN
    14. Z Axis Chip Screw
