UDM CNC Double Column Machining Center Inquiry

UDM E

UDM E UDM E UDM E

  • Features:

    • A high efficiency machine suitable for workpiece height under 1000mm.
    • Available to use various milling heads to perform multi-face or 5-face machining.
    • Suitable for high precision parts machining.
    • Suitable for precision mold machining.
    • Suitable for vehicle and aerospace parts machining.

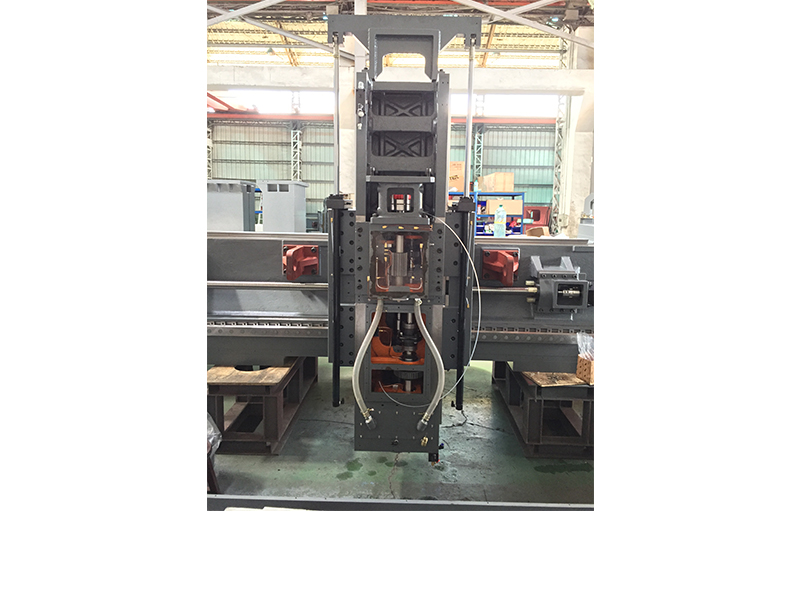

    • Z-axis is available to fit with roller type linear ways combined with high speed spindle for high efficiency machining.
  • MODEL UNIT UDM-2217E UDM-2617E UDM-3217E UDM-2222E UDM-3222E UDM-4222E
    TABLE Table Size mm 2000x1500 2400x1500 3000x1500 2000x2100 3000x2100 4000x2100
    T-Slots mm 22
    Maximum Load tons 6 7 9 8 10 12
    TRAVEL X Axis mm 2200 2600 3200 2200 3200 4200
    Y Axis mm 1700 1700 1700 2200 2200 2200
    Z Axis mm 1000
    SPINDLE Spindle Servo Motor-cont./ 30min. kW 15/18.5 (22/26)
    Speed rpm 6000(4000)
    Taper 　 7/24 taper NO.50, BT-50
    DISTANCES Between Two Columns mm 1800 2300
    Spindle Nose to Table Center mm 200~1200(200~1400)
    FEED RATE Rapid Feed rate X/Y/Z m/min. 15/15/12
    Minimum Setting mm/min. 0.001
    Cutting Feed rate mm/min. 1~8000
    COOLANT &LUBRICATION Coolant Tank Volume L 450 640
    Hydraulic Tank Volume L 70 80
    Lubrication Tank Volume L 8
    MISCELLANEOUS Power Required kVA 50
    Pressurized Air kg/cm² 7
    Hydraulics Required kg/cm² 70
    Machine Weight tons 22 23 25 24 28 32
    Controller 　 FANUC 0iMF (32i-B/ 31i-B) (MELDAS M70/720/730) (SIEMENS / HEIDENHAIN)

  • standard accessories:

    1. 1.Glass window type splash guard
    2. Programmable coolant system
    3. Automatic lubrication system
    4. Spindle air blast system
    5. Working lamp
    6. Alarm lamp for abnormal situations
    7. Indication lamp for dwell & end of job
    8. leveling bolts & pads
    9. Chip auger & chain type chip conveyors
    10. Toolbox with spanners & wrenches
    11. M.P.G
    12. Machine inspection lists
    13. Operation manuals
    14. Controller manuals and circuit diagram
    15. Auto power off
    16. RS-232C terminal interface
    17. Spindle coolant system
    18. Hydraulic system
    19. Heat exchanger
    20. FANUC 0i-MF Controller

    optional accessories:

    1. 8000RPM direct drive spindle(35HP)(Only for FANUC, MELDAS Controller)
    2. 14. 12000RPM or 15000RPM direct drive spindle-BBT 40(only for FANUC or MELDAS controller)
    3. X, Y, Z Axis Linear Scale
    4. A.T.C (24, 32, 40 Tool)
    5. Auto. tool length & diameter measurement(TS27R).
    6. CNC Rotary Table
    7. Coolant through spindle
    8. Oil-feed holder
    9. Oil mist device
    10. Air conditioner for electrical cabinet
    11. FANUC 32i-B(31i-B)Controller
    12. MELDAS (M70,M720,M730) Controller
    13. SIEMENS Controller
    14. HEIDENHAIN Controller
